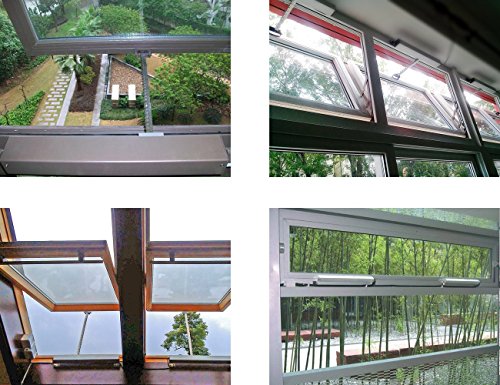

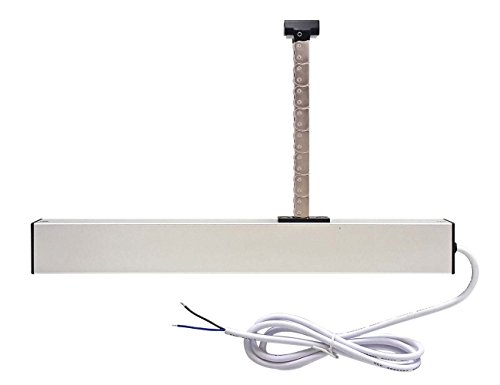

Automatic Chain Window Actuator for Daily Ventilation or Smoke and Heat Removal DC24V 250N 250N (55 lbs), Stroke 300mm (11.8 inch) Silver

描述

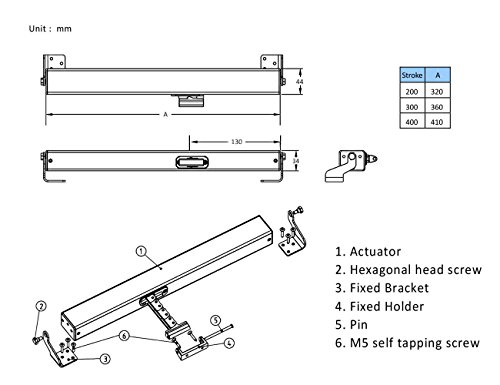

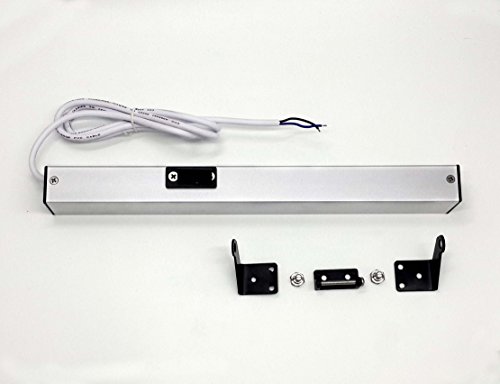

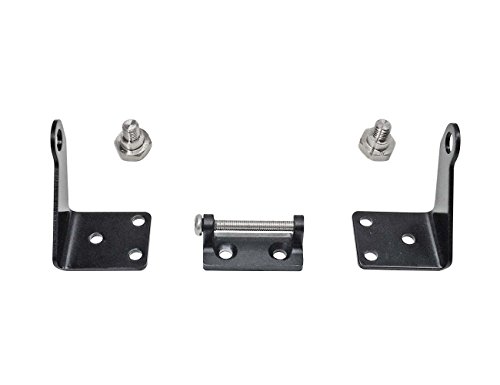

Specification Input Volt: DC24V Max. Current: 1.0A Push/Pull Force: 250N (55 lbs) Stroke/ Chain Length: 300mm (11.8 inch) Speed: 8mm (0.31inch)/s IP Class: IP32 Color: Silver Material: ‥ Body: Anodised aluminum ‥ Chain: 304 stainless steel ‥ Bracket: 304 stainless steel Operating Temp: -4°F~149°F/ -20°C~65°C Dimension: 44*34*360mm / 1.73*1.34*14.2inch Package Including 1 X LK-SCE300-DS chain opener 1 X Front bracket for window sash 2 X Rear bracket for frame 2 X Hex screw 1 X Manual Installation Notice The actuator must be installed by professional technician Make sure the actuator is matching with the window before installation Actuator is not for outdoor using Actuator doesn’t have anti-pinch function, be careful when installing or using The power supply must comply with the power of DC24V/1A The actuator MUST NOT connect to AC power Between actuator and main power supply must be a switch to cut power off Be careful when installing, avoid the window closed accidentally causing injuries Please use a synchronizer when one window controlled by two actuators
