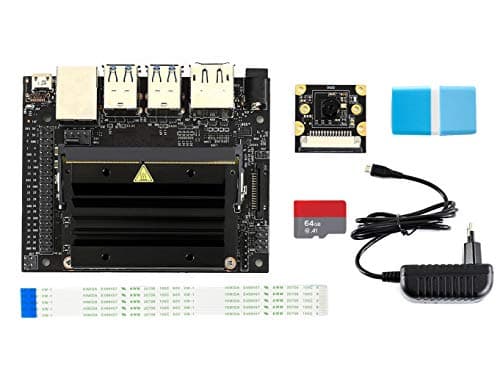

Colour Name:Jetson Nano Developer Kit B (for EU) Jetson Nano Developer Kit Specifications GPU: 128-core Maxwell GPU CPU: quad-core ARM Cortex-A57 CPU Memory: 4GB 64-bit LPDDR4 Storage: Micro SD card slot (requires an external minimum 16G TF card) Video: Encode: 4K @ 30 (H.264/H.265) Decode: 4K @ 60 (H.264/H.265) Interfaces: Ethernet: 10/100/1000BASE-T self-negotiation Camera: 12-ch (3x4 OR 4x2) MIPI CSI-2 DPHY 1.1 (1.5Gbps) Display: HDMI 2.0, DP (DisplayPort) USB: 4x USB 3.0, USB 2.0 (Micro USB) Others: GPIO, I2C, I2S, SPI, UART Power: Micro USB (5V 2A) DC jack (5V 4A) Dimensions: Core module: 69.6 mm × 45 mm Whole kit: 100mm × 80mm × 29mm IMX219-77 Camera Features Supports NVIDIA Jetson Nano Developer Kit 8 Megapixels Sensor: Sony IMX219 Resolution: 3280 × 2464 Lens specifications: CMOS size: 1/4inch Aperture (F): 2.0 Focal Length: 2.96mm Angle of View (diagonal): 77 degree Distortion: < 1% Lens dimensions: 6.5mm × 6.5mm 4 screw holes Used for attachment Provides 3.3V power output Dimension: 25mm × 24mm Wiki : www.waveshare.com/wiki/Jetson_Nano_Developer_Kit? PACKAGE CONTENT Note: please properly keep the Jetson products' original packing box and accessories (if any) for warranty service, and the serial numbers on the product and packing box MUST be matched, otherwise, the original manufacturer will reject returning / repairing. Jetson Nano Developer Kit x1 IMX219-77 Camera x1 Micro SD Card 64GB x1 Power adapter EU standard USB output x1 SD card reader x1 15-pin FFC (opposite sides contact) x1
